Eight-Function 8″ LED Box Tail Light (T80)

$23.25$26.43

In Stock

Clear
Compare

Description

The T80 is able to meet all requirements for stop, turn, tail, side marker, clearance marker, rear reflector, side reflector and license plate light in a revolutionary, cost-effective design. With a sonic-welded case and potted electronics, this light will survive the harshest environment. Unlike the competition, this lamp is actually submersible!

Although every manufacturer claims that their box light is waterproof, leakage is still the main complaint. We solved this problem by designing the light engine to be less than 0.6″ thick. This allows us to guarantee a perfect, waterproof seal every time. And despite the T80’s unique design, it still fits in the industry-standard spacing, and uses standard hardware. If you ever manage to break the lens and the light fills with water, rest assured that the potted circuitry guarantees it will still continue to work for years!

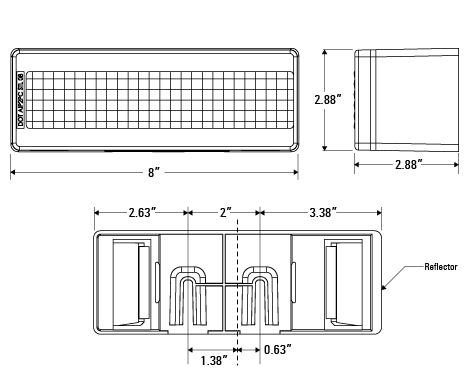

Dimensions:

  8″x 2.88″x 2.88″

LEDs: 7 +1 white license plate light on left side
Voltage: 9 – 14V DC
Current: 0.14A-0.20A Left
0.06A-0.09A Right
+ 0.11A-0.15A Brake
Connector:
LED Colors: Red
Mounting Styles: Uses (2) ¼-20 carriage bolts
Wire Colors:
White Wire Ground
Brown Wire Low Intensity
Green Wire Right Turn/Brake
Yellow Wire Left Turn/Brake

Additional information

Item

8 Function 8" Box Tail Light Left Side Pig Tail w/ Ground Ring, 8 Function 8" Box Tail Light Left Side Pig Tail, 7 Function 8" Box Tail Light Right Side Pig Tail w/ Ground Ring, 7 Function 8" Box Tail Light Right Side Pig Tail
